Handbook/Feature Overview

Feature Overview

A complete tour of script editing, visual tools, validation and publishing.

Updated Page history on GitHub

A tour of what the Paradox Modding Toolkit does. Screenshots show the packaged extension, using CK3 mods and Victoria 3 demonstration projects. Each section links to the wiki page with the full details.

Three games are supported: Crusader Kings III, Victoria 3 and Europa Universalis V. The feature matrix and what each one gets is on Supported Games.

Preview availability: new sections below describe 0.5.5, a prerelease of the upcoming 0.6.0 update. The latest stable release is 0.5.0. Existing screenshots remain where the workflow is unchanged; new crops show the preview controls. See Upgrading.

Start without finding folders#

The welcome panel offers Create a Mod, Find Existing Mod and a tutorial. The first-mod tutorial action enables scope hints. After creating or finding a mod, choose Add to Current Workspace or Open in New Window. Existing projects can go straight to editing. See Getting Started.

The Project dashboard#

The PX Toolkit icon opens Project, with the active game, workspace mods, tool groups and editor settings. Small + and folder buttons create or add mods. A filled focus dot marks Follow active editor or a pinned mod; indexing has a separate switch. The package icon opens All Tools, and row customization is in the ... menu.

Project with visible focus selection and editor settingsEnlarge image

Mod Overview and Localization Coverage now live in Explorer by default. Problems by Type, Overrides & Conflicts and Dependencies are available there but start hidden. Custom placements are preserved. Utils, Test & Troubleshoot and Paths remain separate toolkit views. See Sidebar Views.

Settings with explicit destinations#

Project > Settings > All settings opens one searchable Toolkit Settings catalogue. Choose the mod context, then each row's save destination. Shared authoring rules belong to the mod's project.json; private per-game paths stay in this VS Code profile. Each row names the active value's source, so a saved personal default is distinguishable from a mod override. See Configuration.

Toolkit Settings showing save destinations and active value sourcesEnlarge image

Smart editing#

Scope-aware completion. Key positions offer verbs (triggers, effects, scope targets, your own scripted effects), value positions offer nouns (traits, events, on_actions, loc keys), and prefixes like scope:, culture: and title: complete their referents. Items valid in the current scope rank first by real vanilla frequency; the rest are annotated, never hidden.

Hover docs, merged. Documentation from your own script_docs dumps and, on CK3, the bundled wiki lists, plus the supported scopes, the live scope chain at the cursor, resolved localization text, your own # comments above a definition, a clickable definition link and reference count, and inline .dds texture previews.

Navigation. Go to definition, references and workspace symbols span the mod, parents and vanilla. The toolkit tracks unsaved definitions and keeps symbol kinds separate. The preview recognizes Crozier faiths, rites, tenets and standalone laws while retaining older layouts. Rename remains limited to supported, mod-owned symbols. See Editor Features.

Script colors. Bold declarations, references, variables, scope chains, conditions and actions have distinct semantic roles. GUI and localization expressions distinguish data objects and functions, including multiline bindings. Defaults follow the active theme and preserve user color overrides.

Outlines that go all the way down#

Every multi-line block is an outline entry at any depth, so breadcrumbs and sticky scroll show the real path instead of stopping two levels in.

Breadcrumbs and sticky scroll following the full block chain inside a character interactionEnlarge image

The same holds in .gui files (the nested widget tree, with declarations labeled) and localization files. Folding works in all of them, and descriptor.mod and the bundled _*.info docs fold and outline too. See Editor Features.

Validation#

Structural diagnostics, instantly. The toolkit catches the silent-failure class as you type: unbalanced braces, missing UTF-8 BOM, localization header and filename mismatches, folder-name traps, unknown event references, missing required loc. These checks target structural mistakes and run live. Every code and its in-game consequence is in Configuration.

tiger, integrated. Semantic validation is delegated to tiger, as ck3-tiger or vic3-tiger depending on the game. Run it from the status bar, Ctrl+Alt+V, or on every save. Reports land in the native Problems panel with the tiger error key, so # px:ignore suppression works on them too. The toolkit downloads and updates the binary, generates a conf, snapshots a baseline so a legacy mod only surfaces new problems, and runs tiger's unused-definition scan. Your dependency mods are passed to tiger as load_mod entries, so a submod's references into its parents resolve instead of coming back unknown.

The running game, in your editor. Launch in debug mode and the error.log watcher turns the game's own script errors into squiggles on your files as they happen, multi-line Script system error! blocks included.

Walk an event before you play it#

Simulate Event lays an event out in firing order (trigger, immediate, every option, after), with the title, description and option names resolved through your localization and each block printed back as readable script.

Simulate Event walking an event beside its sourceEnlarge image

Every onward trigger_event is a step-into link, so you can walk a whole chain with a breadcrumb and a Back button without opening ten files. Nothing is invented: an unresolvable reference is labeled as one.

See the chains#

A card selected in the event graph, with the structured inspector openEnlarge image

Show Event Graph draws your events, on_actions and decisions as an interactive graph where left to right means "happens after": every card's column is its distance from the chain's start, cycles draw as return arcs, and each event card grows a row per phase (trigger, immediate, options, after) so an edge attaches to the option that fires it. Select a card and everything outside its neighborhood dims: blue is what it fires, orange is what fires it, and Chain cuts the graph to one card's story at an adjustable depth.

The inspector shows the selected event as a structured editor: localized title, description and options edit in place, values become typed inputs, and changes wait for Save. The preview preserves current editor text and unrelated statements, refuses stale forms and reports failed saves. Source links open the exact line. The query box completes on your mod's real event ids, and the graph exports as SVG. The full tour is on Event Graph.

Vanilla knowledge built in#

Format docs (.info) side by side#

When a matching .info format doc exists in the game directory for the file you are editing, a title-bar button opens it side by side: Paradox's own schema documentation, syntax highlighted, right next to your file. (CK3 only, the other two games ship no .info docs.)

Editing opinion modifiers with the vanilla _opinions.info format doc open beside itEnlarge image

Vanilla examples one click away#

Inside an .info doc, a title-bar button lists vanilla files from the same folder. In the prerelease, Explorer also offers PX: Copy Vanilla File to Focus Mod and PX: Create Vanilla Folder Path in Focus Mod. The second creates only the folder path; existing mod files and vanilla sources remain intact.

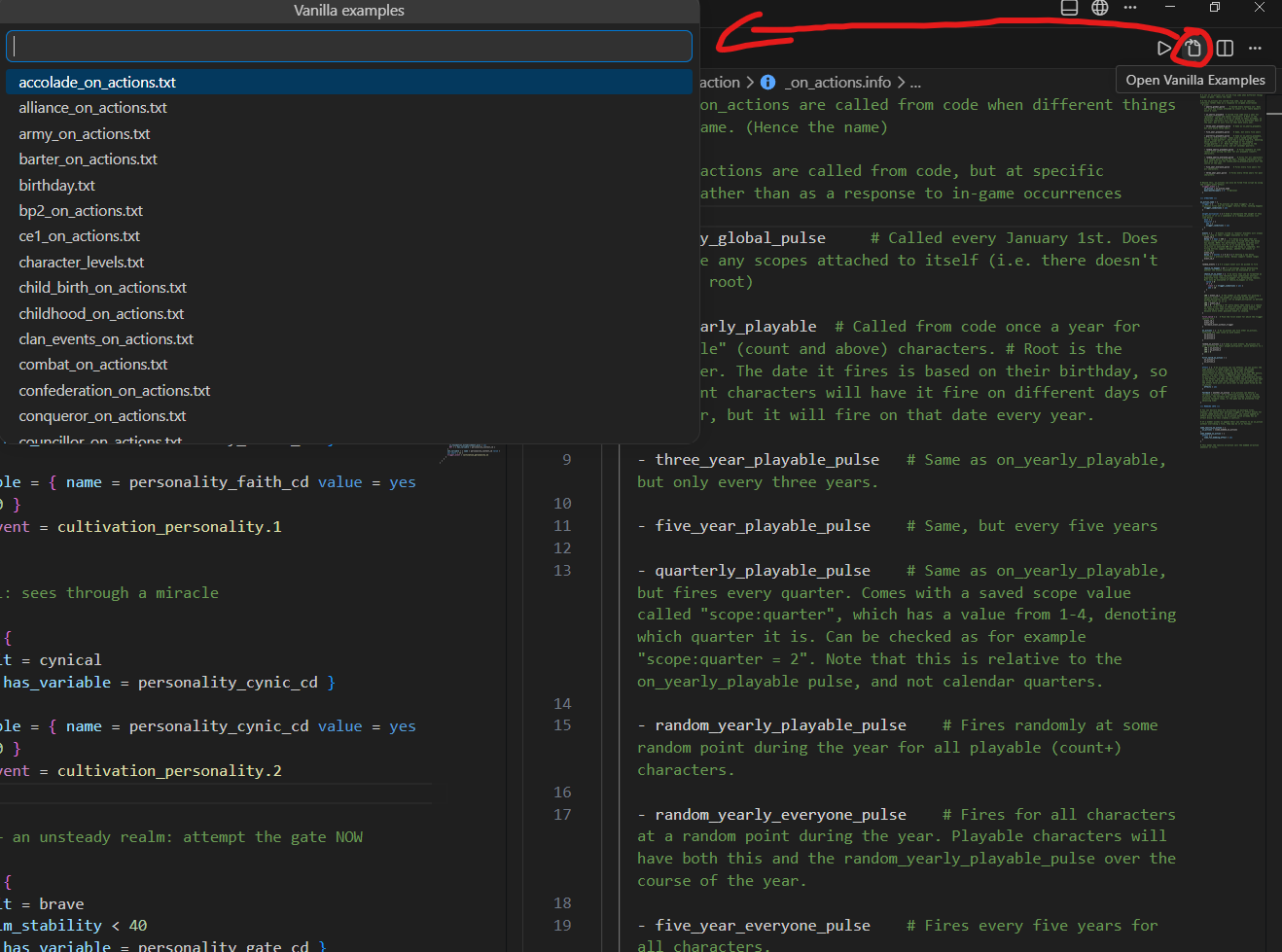

The Vanilla examples picker listing every vanilla file in the same folderEnlarge image

The Examples Wiki#

Show Examples Wiki opens a searchable browser over everything the toolkit knows from your game: triggers, effects, event targets, modifiers, datafunctions, data types, and your own variables and lists, ranked by how often vanilla actually uses them. An article shows the engine's own docs, the observed arguments, and real vanilla example sites with the surrounding lines inline, one click from the file itself. Articles cross-link: a scope article lists everything usable from that scope, a datafunction links its return type, and a variable article shows where it is set and where it is read. See Examples Wiki.

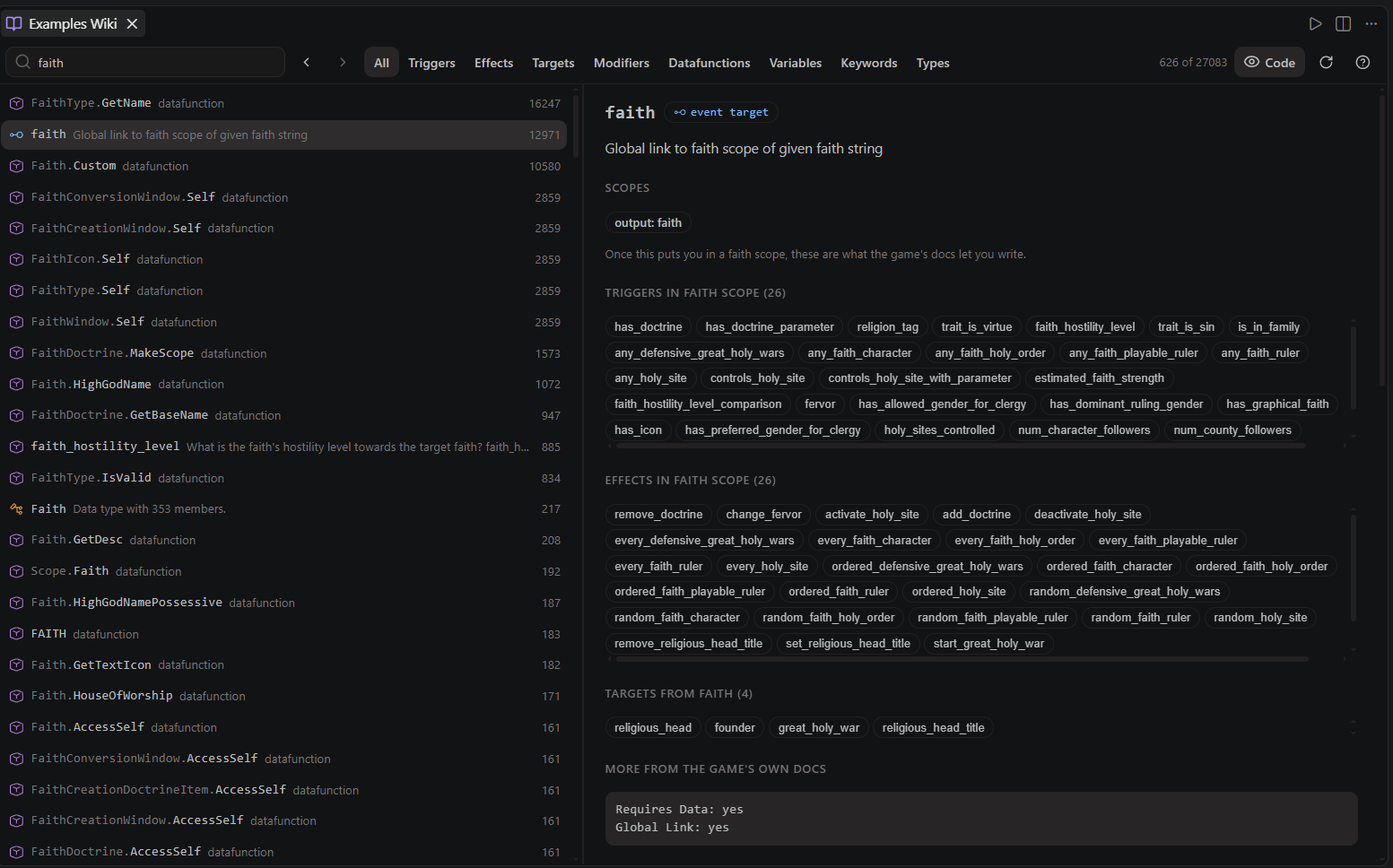

The Examples Wiki searching for "faith": category tabs, ranked results with usage counts, and the faith event-target article listing triggers and effects in faith scopeEnlarge image

The Project panel's Wiki row opens the same knowledge as a hub: the image guidelines, every diagnostic code's explanation page, the mod report, Steam's result codes and BBCode tags, a curated Modding Tools list of what other modders built for the game, and a launcher for the Examples Wiki, all searchable by title and body text. In the prerelease, its game switch also reloads Examples for the selected game without changing workspace settings. Foreign-game references omit workspace variables. CK3 image guidance and workspace-only reports retain their scope. Launch Options (CK3) reads the installed format reference.

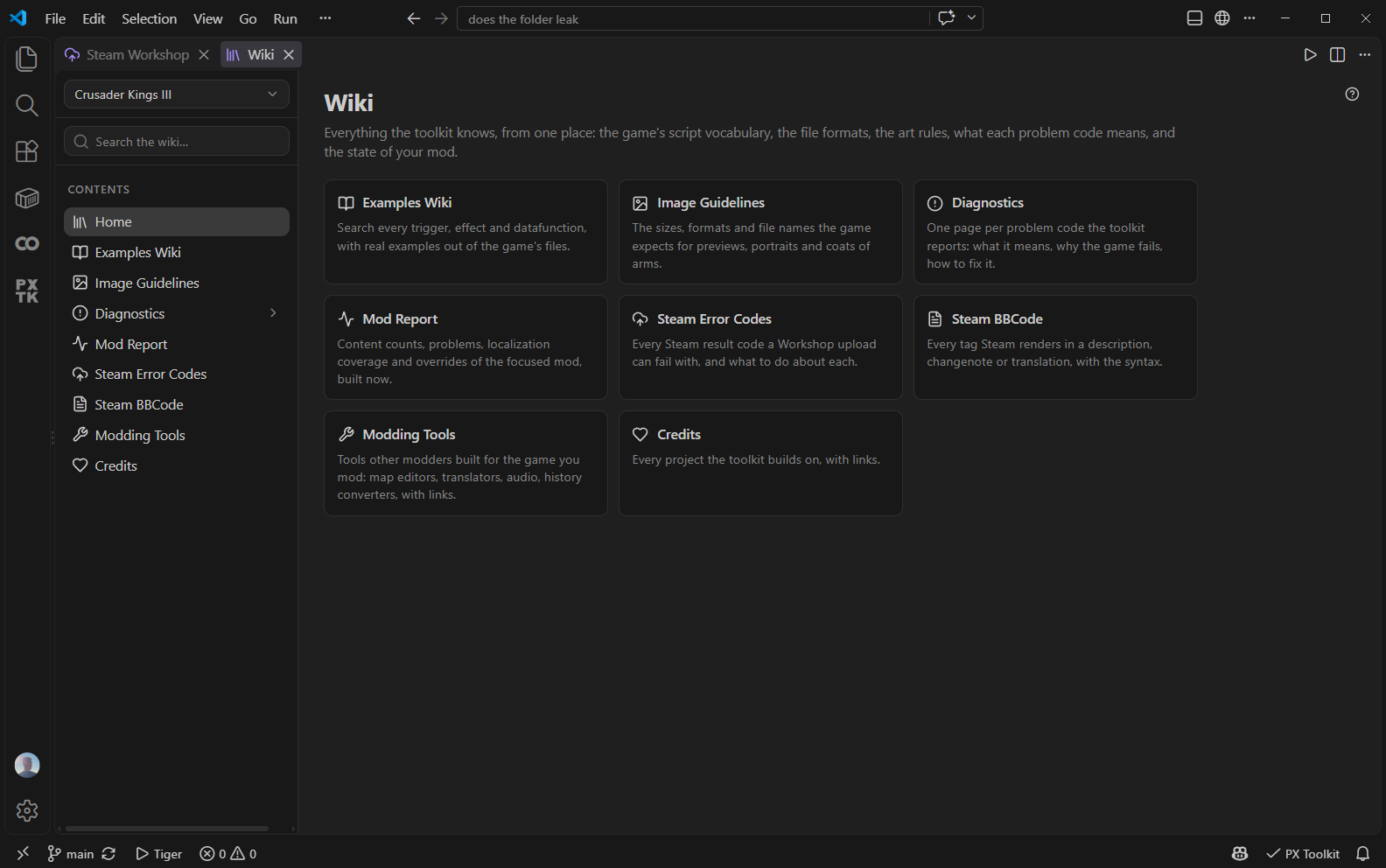

The wiki front page: a Contents sidebar and a card per reference pageEnlarge image

Write CK3 content in a form#

The Create group of the Project panel opens a creator per kind: Trait, Dynasty Legacy, Culture, Tradition, the Dynasty Tree and the Coat of Arms Designer. Each one is a form over the keys the game's own docs describe, with a picker wherever the index knows the values, the value vanilla writes most as every placeholder, and a preview drawn from the game's own art and text: a trait's tooltip, a legacy row with its five perk tiles, the culture window header, a family tree.

They write ordinary script. The preview preserves current unsaved sources, comments and unrelated content, rejects stale input and reports failed saves. Localization follows the selected mod's author defaults and existing layout. Picture imports share DDS reference and mip controls. Validate with a tool that supports your game build, then test in the game. See Content Creators.

Publish to the Steam Workshop#

The Workshop panel puts your mod's Workshop item on one page, through the running Steam client: title, description, tags, the preview gallery, required DLC and items, translations, changenote and live statistics. Every part of an upload is its own switch (mod files, details, requirements, each translation, changenote), pre-upload checks run before anything reaches Steam, and uploads always confirm first. The listing lives as files in .px-toolkit/workshop inside the mod, in Steam's BBCode with highlighting, completion and a live preview, and the changenote comes from your changelog, your last commit or a box you type in, whichever you pick. A first publish starts private and writes the item id back where the game's tooling expects it. See Steam Workshop.

The prerelease can prepare an older listing from a local ZIP with its own saved mod files and version. Gallery preparation keeps smaller upload files in previews/ and full-size originals in preview-originals/. Creating a local legacy version does not publish it. The live listing remains separate.

Start the game from the editor#

The Run button on any script or .gui file launches the game in debug mode through Steam; its dropdown offers the map editor and a quick pick of per-game presets (Continue Last Save, CK3's Skip to 1066 Lobby and Benchmark, vanilla), every flag verified in the game's own binary. F5 works too: a paradox-game run type backs the Run and Debug panel, and launch.json makes your own option sets permanent. Combined with the error.log watcher, the loop is edit, F5, read the squiggles. See Running the Game.

GUI tooling#

Widget tree#

Show GUI Widget Tree renders any .gui file as a collapsible hierarchy: windows, containers, widgets, templates and animation states, with type badges, filtering, click-to-jump (which also flashes the line in the source) and auto-refresh on save. Focus subtree pins one branch so you can work inside it without re-narrowing.

Focus subtree pins one branch of the widget treeEnlarge image

A visual GUI editor#

Open GUI Editor (Ctrl+Alt+P) draws your window with the measured layout engine and lets you work in it: click to select the widget you meant, read every property with the template or type it came from, drag and resize on the canvas, multi-select, use layers and guides, and insert from an element library where every element is previewed as the game draws it. Localization renders resolved by default, so the canvas reads like the game rather than like key soup.

The GUI editor on a full mod panelEnlarge image

Three things it does that a preview cannot: it writes your file with one surgical edit per gesture (comments, tabs and single-line bodies survive), it writes the value rather than the cursor so anchored widgets land where you dropped them, and it turns a gesture down before it moves when the engine would ignore what you asked for. CK3 and Victoria 3. See GUI Editor.

A flag editor#

Open Flag Builder (Victoria 3 and EU5) composes a coat of arms from the game's and your mods' patterns and emblems, recolored exactly as the game does it. Drag emblems on the canvas, scrub positions and scales, pick colors in the game's own formats, browse every existing flag as a live preview, and save the result as script into the mod you choose. See Flag Builder.

On CK3 the same command opens the Coat of Arms Designer, which adds the game's preset layouts, its dynasty, house and title frames with their six tiers, multi-select and alignment tools, a snapping grid, and a library that keeps your designs outside any mod. See Content Creators.

The Flag Builder editing a Victoria 3 flagEnlarge image

DDS textures and images#

Hover a supported .dds path for a mod-first texture preview. Open the file for a zoomable viewer with format, dimensions and alpha background. In the prerelease, choose a stored mip level and export only that preview level to PNG. DXT1/3/5, BC7 and supported uncompressed decoding need no external codecs.

DDS Preview showing a selected stored mip levelEnlarge image

The converter handles batches and Explorer folders while preserving sources. The prerelease matches a reference DDS's format and exact mip count, or uses manual base-only, full or custom chains. Crozier pattern masks can need a partial chain, so inspect the intended target. Image Guidelines (CK3) separates community sizes from current file evidence and explains export limits. See DDS and Images.

Localization#

Loc text shows inline, and coverage tracks missing, orphaned and untranslated keys. The prerelease adds create, edit and override actions that follow the selected mod. Owned keys stay in place; new keys follow author defaults, related entries and source files. New overrides use replace folders. Unsaved text and entry styles are preserved, and stale prompts require a fresh run.

Translation tooling goes as far as generating a complete standalone translation mod for someone else's mod: descriptor with the dependency, every loc file mirrored and blanked with the original text kept as comments, a playset so it resolves when opened alone, and a TRANSLATE.md with a ready-made AI translation prompt. See Multi Mod and Translation.

Game-version review, experimental#

Compare an old game version, your mod and a target version, with a separate Result folder. Mod Compatibility adds exact-build recipes for CK3's known faith and mask changes. These tools are off by default, need human choices and reviewed diffs, and do not certify a whole mod or its saves. See Game Version Compatibility for supported routes, recovery and the bounded Lantern gameplay result.

And more#

  • New Mod and the two layouts: Choose the current workspace or a new window when creation finishes. New Mod creates a mod with its descriptor, either in the game's own mod folder with .px-toolkit/workshop/ and .pxignore inside it, or in a projects folder where the content lives in <project>/mod and the game finds it through a link. Move Mod converts one into the other later, listing included. See Getting Started.
  • Content scaffolding and snippets: New Content generates events, decisions, interactions and on_action hooks that are correct by construction (right folder, BOM, namespace declared, on_actions written as appends). Inside a file, typing offers the measured skeleton of that folder's definition kind and its common child blocks, and Insert Snippet (Ctrl+Alt+I) lists them next to the engine's own block examples.
  • Custom calendars: a total-conversion mod declares its era mapping once, in <mod>/.px-toolkit/calendar.json, and every script date shows its in-game form as an inlay hint, with a command that generates the in-game date localization. See Custom Calendars.
  • Multi-mod workspaces: every mod in the workspace is indexed together, with read-only parent mods for submods and compatibility patches, and no primary mod to configure.
  • Setup and health check: detects the game, the install, the mod folder and the dump folder, and tells you what is missing.
  • Not tied to VS Code: the language server is standard LSP over --stdio and runs from neovim, Zed, Helix or your own application. See Outside VS Code.
  • Modding with an AI agent: the agent skills for Crusader Kings III and Victoria 3 are a separate project, paradox-ai-modding, for any agent that reads SKILL.md files.

For the full guided tour of the editor features, continue with Editor Features.
